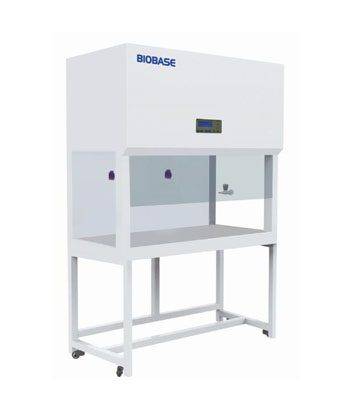

Laminar Flow Cabinet sample protection only Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
LCD Display: Waterproof socket :
Airflow velocity, UV timer, UV work time, 2 waterproof sockets are located in the side panel,
system work time, real time for optimum convenience of using small devices inside
the cabinet
UV lamp : Gas Tap:
Emission of 253.7 nanometers for most efficient decontamination
Side glass window:
The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
Internal dimension = 4 x 2 feet or 3 x 2
Airflow speed is controlled by regulator
HEPA efficiency report will be given alone with 99.9 0ercent
Available Sizes : 2ft , 3Ft , 4ft,
TECHNICAL PARAMETERS
| Model | BBS-V1300 | |
| External Size（W*D*H) | 1300*750*2040mm | |
| Internal Size（W*D*H） | 1200*645*610mm | |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side and Front Windows:5mm toughened glass anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <65dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| LED Lamp | 12W*1 | |
| UV Lamp | 30W*1 | |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | |
| Waterproof socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2 | |
| Optional Accessory | Electric height adjustable base stand | |
| Gross Weight | 228kg | |
| Package Size（W*D*H） | 1460*1070*1650mm | |
Standard Accessory
LED lamp 1pc
UV lamp 2pcs
Base stand 1pc
Gas Tap 1pc
Waterproof socket 2pcs
