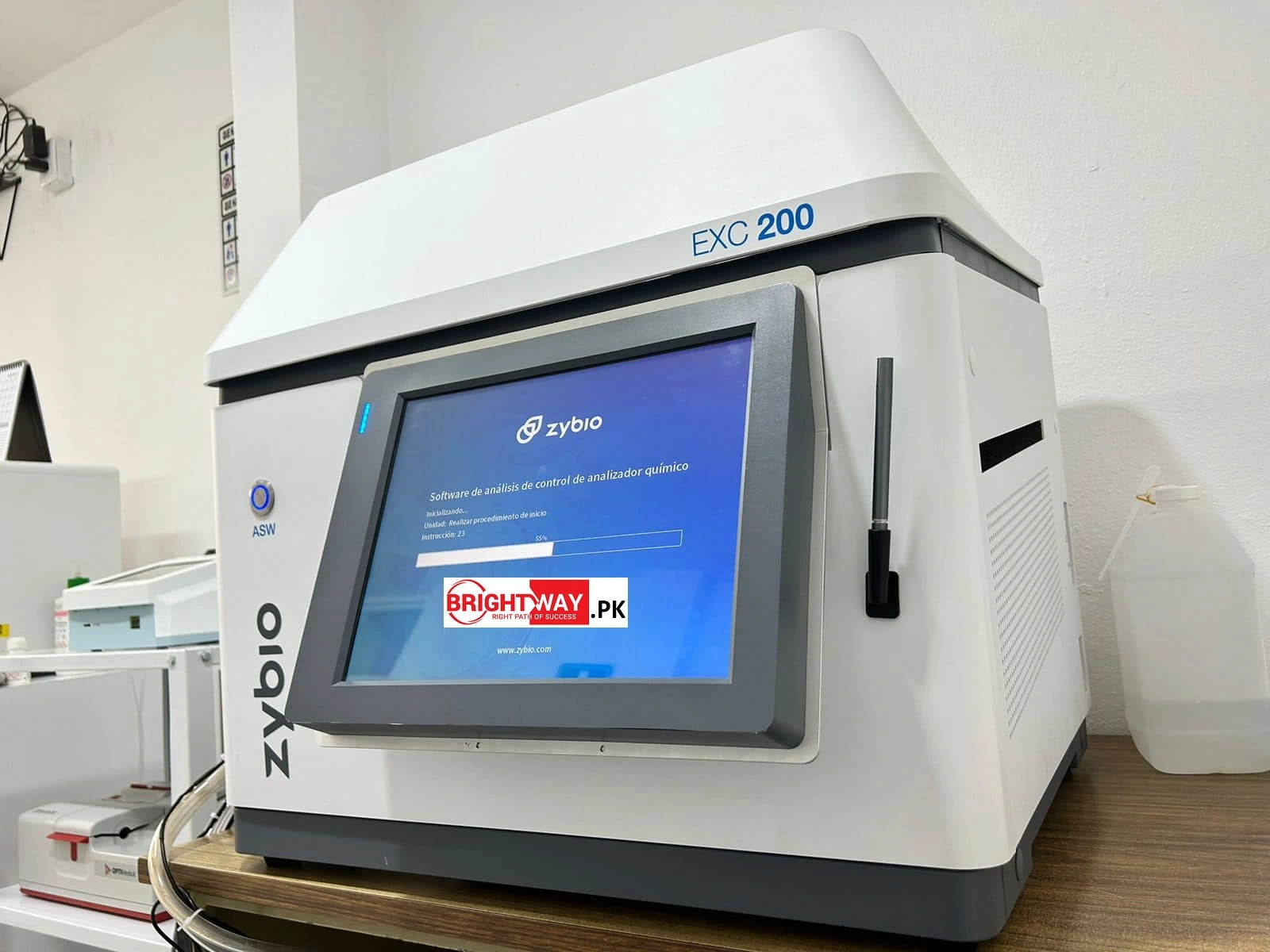

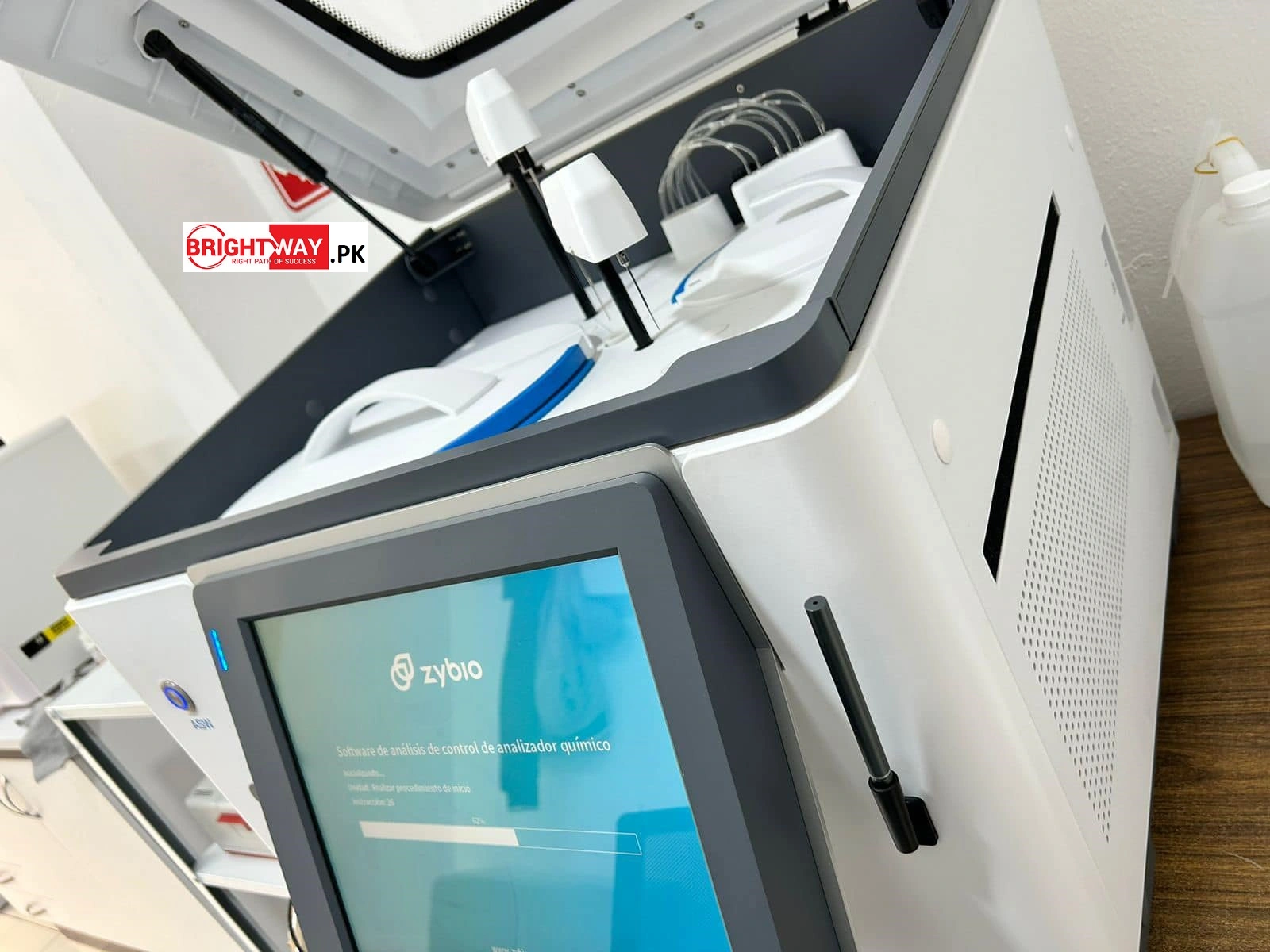

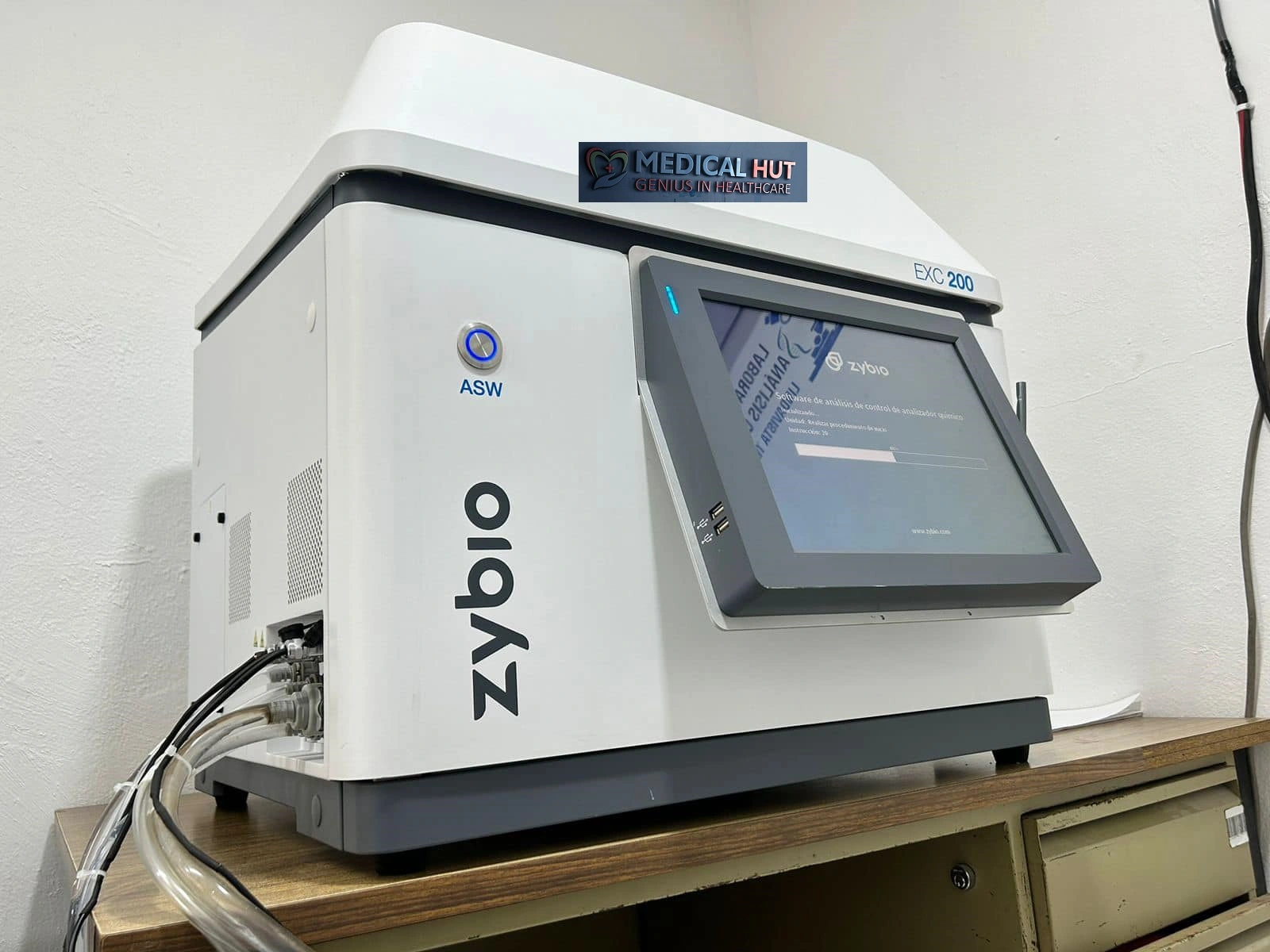

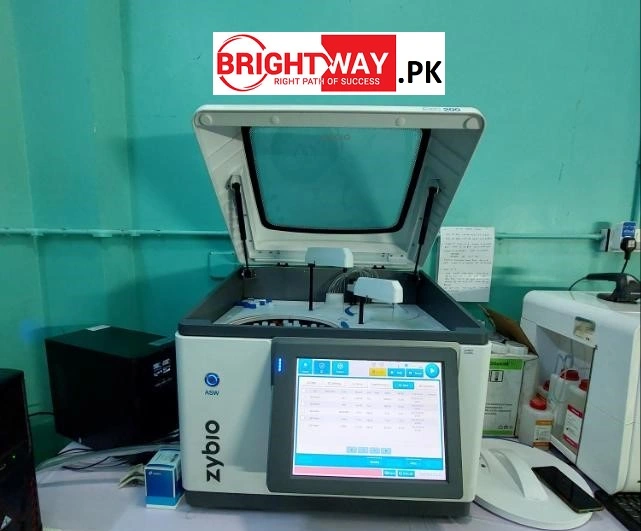

Automatic Chemistry Analyzer
A cost-effective choice dedicated for small healthcare sites. An operating system integrated with the analyzer saves more space for small and medium laboratories. Touch screen, color and intuitive navigation menus ensure ease of use. Minimum reaction volume and less water consumption result in savings. Bi-directional LIS interface, provides convenient transmission of results.
The EXC 200 combines advanced versatile functions for high quality testing with a clinical chemistry analyzer, delivering throughputs up to 240 t / h.
24 hour continuous refrigeration to keep reagent in good condition.
High pressure flush probe, both internally and externally, to keep the level low
transportation: 0.005%.
The probe is designed with fluid detection, automatic depth control and collision protection.
Extended optical density readout with linearity is 0-4.0 Abs.
Optical powder system – spectrophotometry for more reliable results.
Transfer rate Up to 240 t / h
Methodology: end point, fixed time, kinetics
Principle: absorption photometry, turbidimetry
The system is open
Optical system
Light source: halogen tungsten lamp
Wavelength: (340-800) nm, total 12 wavelengths
Absorption spectrum: 0-4.0 abs
Sample
Number of samples: 40 positions
Sample volume: 2 μl-50 μl, 0.5 μl steps
Sampling probe: Liquid level detection, automatic depth control and collision protection
Sample type: Serum, plasma, urine, gastric fluid, pleural fluid, and cerebrospinal fluid
Reagent system
Reaction system
Cuvette 63 cuvettes with an optical diameter of 5 mm
Reaction volume: 90 μl 450 μl
Reaction temperature: 37 ± 0.1 ° C
Cleaning system 6-stage station
Control
Control Rule: Westgard
Calibrations
Calibration mode:
One point, two points, multiple points, Logistic-Log4 / 5P, Exponential-5P, Polynomial-5P and Spline
Operating system
Windows 10 LIS support
Host interface
RS232, TCP / IP
zybio exc 200 Automatic biochemistry analyzer domination
Power supply 100-240 V ~, 50/60 Hz
Constant air cooling
Water consumption <5 l / h
Dimension (mm): 710 (W) × 705 (D) × 635 (H)
Weight: 65 kg
