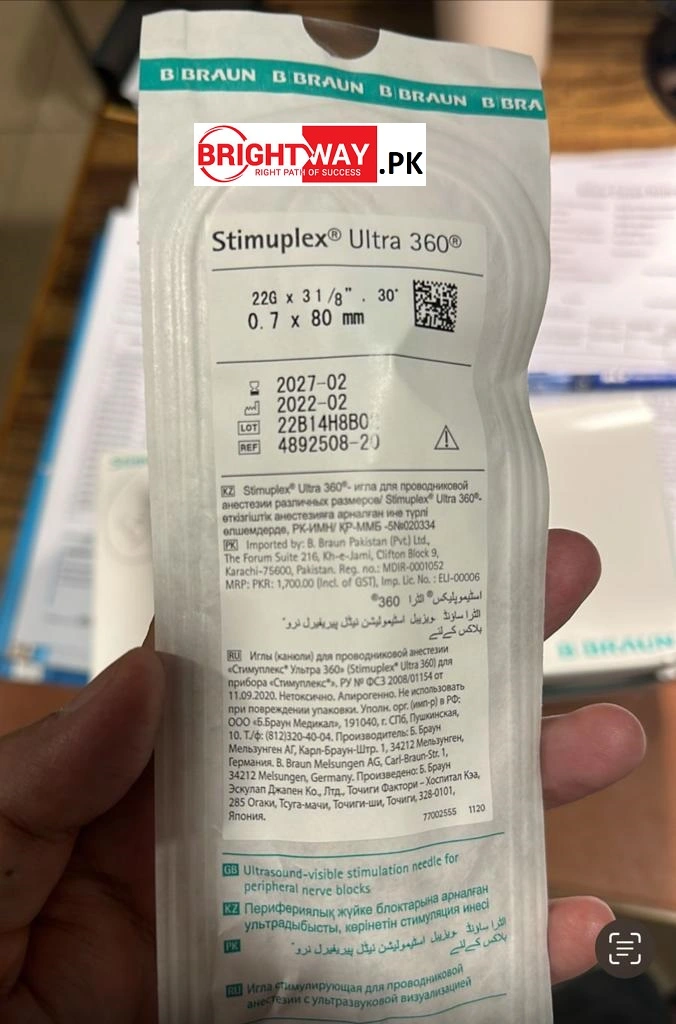

22G x 31/8″.30″ 0.7 x 80 mm SIZE Needle

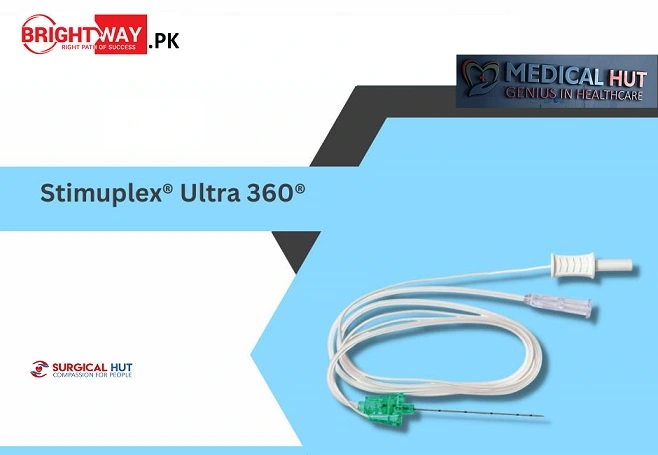

B. Braun Stimuplex Ultra 360 Insulated Echogenic Needle (25/Case) includes a 30° bevel and extension set. It is available in your choice of 20 or 22 Ga sizes.
Stimulating Single Shot Nerve Block Needle
For single shot nerve blocks performed under ultrasound and nerve stimulation (dual guidance). Navigation Safety code for identification of the needle and needle tip position Visibility 360° X-pattern and clear coating result in better ultrasound visualization and tip identification compared to previous designs Tactile Feedback designed for consistent puncture – same 30° back-cut bevel as previous Stimuplex® Ultra and Ultraplex® needles.
Pediatric Use: The device can be used for all patients in need for anesthesia or pain therapy by plexus or peripheral nerve blocks. No gender or age related limitations. Peripheral nerve block needles and catheters can be used for adults, pediatrics and neonates.
Designed for single shot nerve block procedures, the B. Braun Stimuplex Ultra 360 Insulated Echogenic Needle features B. Braun’s innovative new echogenic 360° X-pattern. It is an insulated alternative to the Ultraplex 360 Non-Stimulating Echogenic Needle.
B. Braun Stimuplex Ultra 360 Insulated Echogenic Needle Features
- Insulated needle.
- The X-pattern improves ultrasound visualization and tip identification.
- Provides 360° visibility. Markings deliver ultrasound visibility from all sides.
- Designed for consistent puncture.
- Features the same 30° back-cut bevel as current stimuplex needles.
B. Braun Stimuplex Ultra 360 Insulated Echogenic Needle Specifications
| Configuration | Latex Information | Total Shelf Life (Months) | Ordering Unit | Units per Case | Dimensions per Case | Shipping Weight per Case | Sterile |
|---|---|---|---|---|---|---|---|
| 22 Ga x 1-3/8 in (35 mm) with 30° Bevel and and Extension Set | Components do not contain natural rubber | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 22 Ga x 2 in (50 mm) with 30° Bevel and Extension Set | Components do not contain natural rubber | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 22 Ga x 3-1/8 in (80 mm) with 30° Bevel and Extension Set | Components do not contain natural rubber | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 20 Ga x 4 in (100 mm) with 30° Bevel and Extension Set | Components do not contain natural rubber | 60 | Case | 25 | 13.563 x 3.500 x 5.563 inches | 0.882 lb | Yes |
| 20 Ga x 6 in (150 mm) with 30° Bevel and Extension Set | Components do not contain natural rubber | 60 | Case | 25 | 13.563 x 3.504 x 5.563 inches | 0.992 lb | Yes |
B. Braun Stimplex Ultra 360 Insulated Echogenic Needle Configurations
- #333640: 22 Ga x 1-3/8 in (35 mm) with 30° Bevel and and Extension Set.
- #333642: 22 Ga x 2 in (50 mm) with 30° Bevel and Extension Set.
- #333644: 22 Ga x 3-1/8 in (80 mm) with 30° Bevel and Extension Set.
- #333648: 20 Ga x 4 in (100 mm) with 30° Bevel and Extension Set.
- #333646: 20 Ga x 6 in (150 mm) with 30° Bevel and Extension Set.
Warranty: Not Available.
