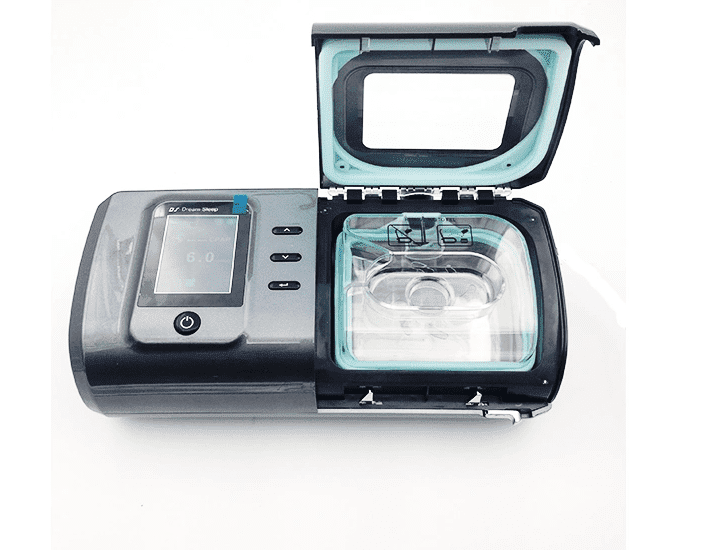

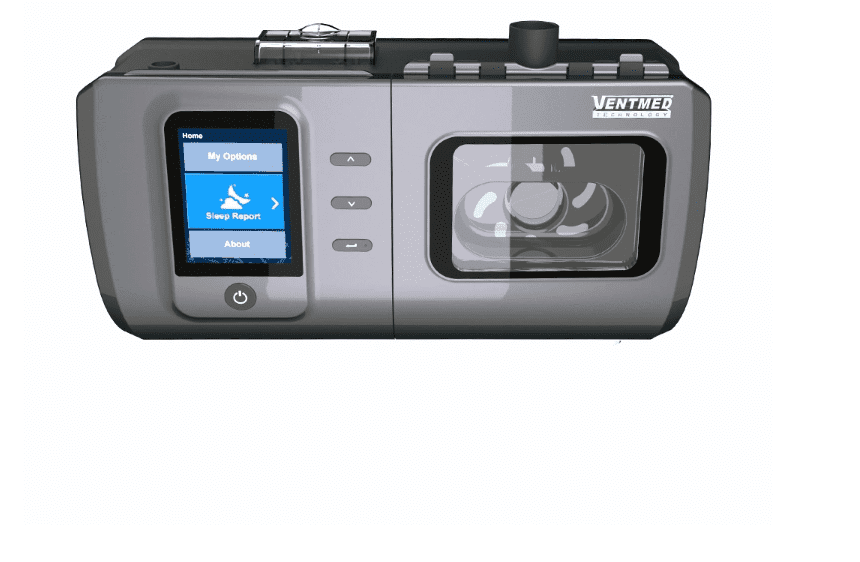

DS-8 BiPAP ST30 NON-invasive BiPAP is a method of breathing support often used to treat central sleep apnea and central sleep apnea(both OSA and CSA), but it’s not used for life support.
Many of the components of a BiPAP machine are the same as the standard CPAP machine.
It can provide the correct airway pressure to prevent disordered breathing, such as sleep apnea, hypopnea, airflow restrictions, COPD, and snoring.
Ventmed Bi-level Positive Airway Pressure (BiPAP) with EPR (Expiratory Pressure Relief ) offers the ultimate sleep therapy comfort.
It combines auto-adjusting pressure delivery with breath-by-breath pressure relief for most natural sleep therapy.
Specification
-
Easy to use and operate.
-
Working mode: CPAP, AUTO, S, T, ST30
-
Size: 28cm x 14cm x 9.5cm
-
Inspiratory pressure: 4- 30cmH2O
-
Expiratory pressure: 4- 20cmH2O
-
Suction ratio: 10-80%
-
Automatic voltage adjustment: automatic adjustment in AUTO mode
-
Backup frequency: 5-50 adjustable
-
Delayed boost: 0 ~ 60min
-
Noise level: <29dBA at 10cmH2O pressure level
-
Data storage: High-speed SD memory card
-
Display: 2.8-inch color display
-
Humidifier: 0- 5 gears
-
Weight: 1.6Kg (excluding power supply)
-
Power requirements: AC 100-240V ~ 2.1A, 50-60Hz
Choice:
Design for medical institutions and home use.
Ventilation:
Various ventilation models, from conventional ventilation to advanced modes,
Modes:
CPAP; Auto; S; T; ST30; TVV-APCV.
Flexible configuration to suit your needs. International standard and advanced technology suitable for wide range use. The compact interface and easy button operation bring you a good operating experience.
Over 15,000 units of the DS series were installed in over 50 countries in the last three years.
Features
1. More than 20 hours of real-time data and more than one year of used records can be saved.
2. Showing airflow and pressure waves on the screen.
3. SD card for data communication.
4. Combined intelligent technology.
5. Contemporary and stylish design for bedroom appeal.
6. EPR(expiratory pressure relief).
7. Auto-Leak Compensation.
8. Auto-Altitude compensation.
9. Alarm to cut down the power.
10. Independent airflow channel.
11. Huge display, 2.8″ TFT Screen, shows airflow and pressure on the screen.
12. Parameters lock: cannot be changed after setting.
Certification:
CE, ISO13485, CFDA(China Food and Drug Administration), Free sale certification(FSC).
