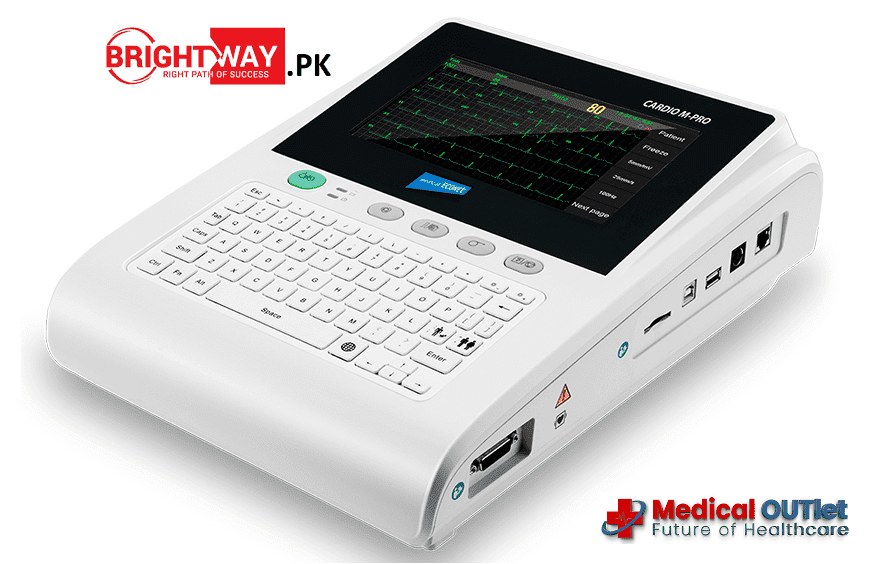

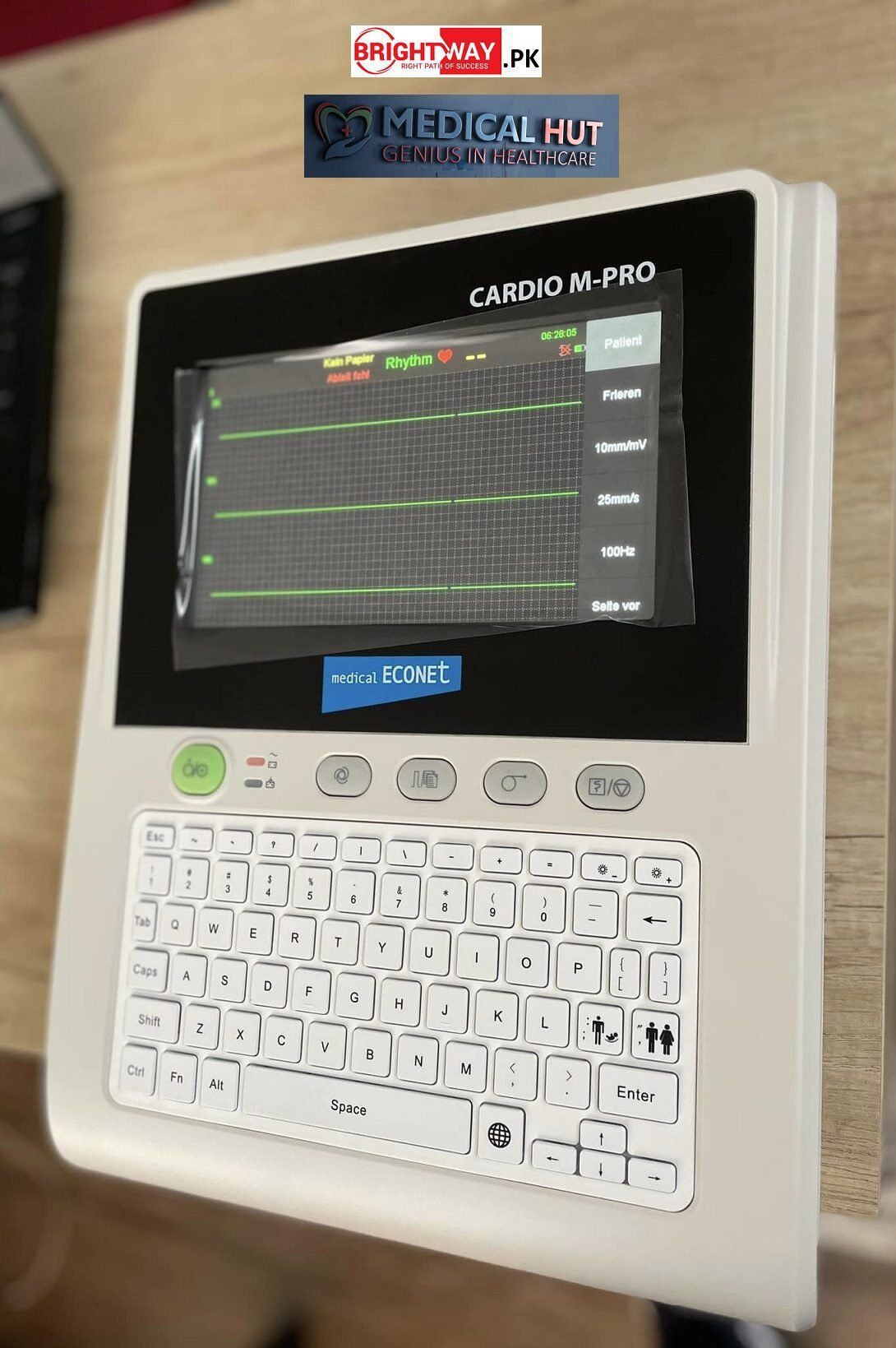

12-channel ECG CARDIO M-PRO with a variety of intelligent features, which will help to reduce the number of time-consuming work steps and will implement a modern workflow in every practice.
The combination of a wide 8 inch LCD touchscreen with a full alphanumeric keyboard will simplify the already functional device even more.
Plug in an external USB printer or a barcode scanner to combine the existing practise management system with the CARDIO M-PRO will reduce the working steps, too.
The CARDIO M-PRO supports all popular outputs, such as manual, automatic, rhythm, R-R, off five recording modes, Minnesota code diagnostic information as well.
The powerful analysis module can report 140 kinds of diagnostic analysis and supports PDF, DICOM, FDA-XML, DAT or JPEG.
• 12 channel resting ECG
• 8″ LCD color touch screen
• Write-out of all 12 channels among each other or in packages (2×6, 3×4)
• Clearly arranged, high printout in DIN A4 format
• Printout of rhythm derivarion for 3- and 6-channel settings
• Manual ECG monitoring or 10 seconds memory ECG for interpretation
• Automatic interpretation recommendation
• Interpretation function distinguishes between 25 diagnostic cases based on Minnesota protocol
Dimensions:
360 x 276 x 130 mm (WxHxD) approx. 4,2 kg
Screen: 800 x 480 pixels
Measurement parameters:
HF, PR Interval, Duration of QRS-complex, QT/QTC, electrical R/QRS/T-axis, RV5/SVI amplitude
Battery:
Lithium-ion – Approx. 5 gours runtime when fully charged or up to 500 printed ECG reports in automatic mode
Connection: 1x SD card / 2x USB / 1x RJ-45 (network)
Included are:
– ECG patient cable
– Power cord
– 6x chest wall suction electrodes
– 4x extremity clamb electrodes
– Manual
– Paper
– ECG gel
Made In:
Germany medical ECONET
